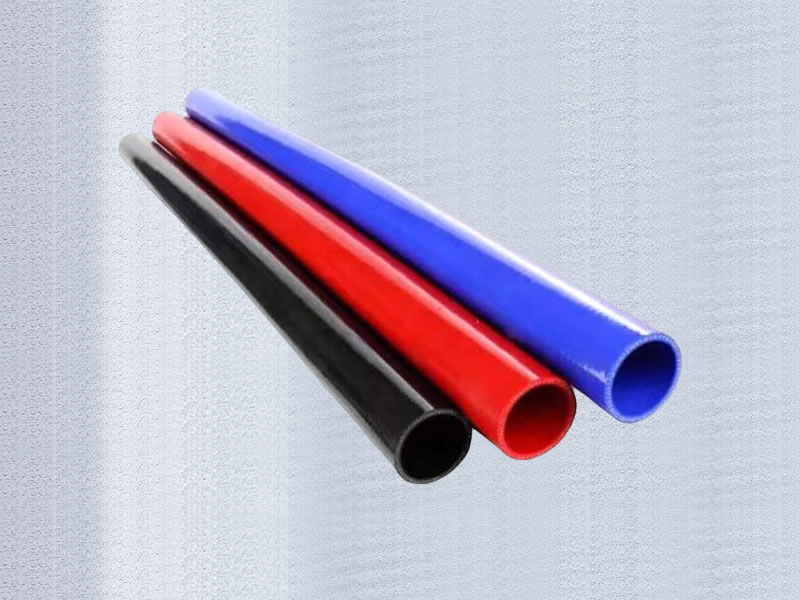

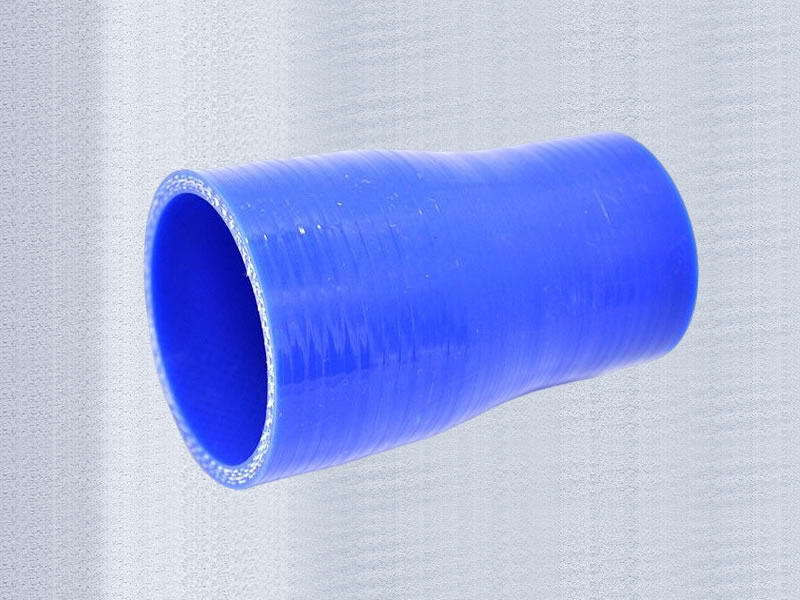

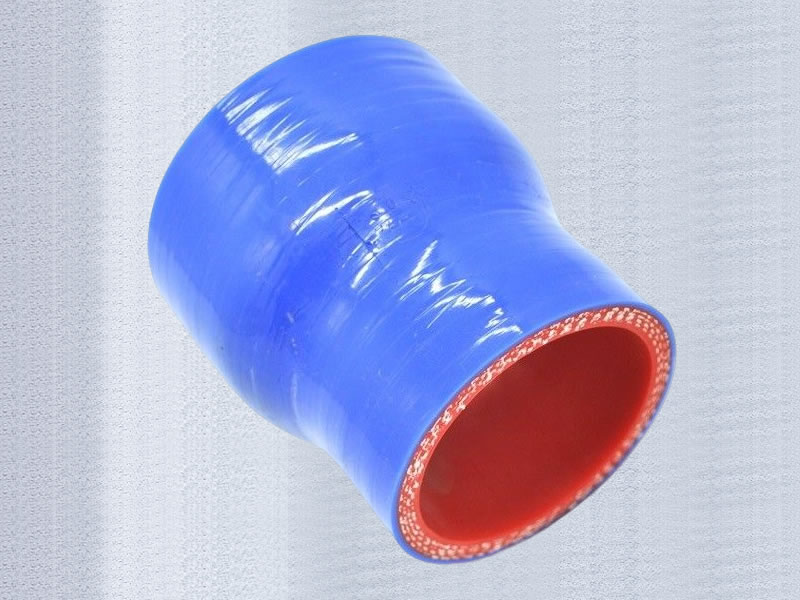

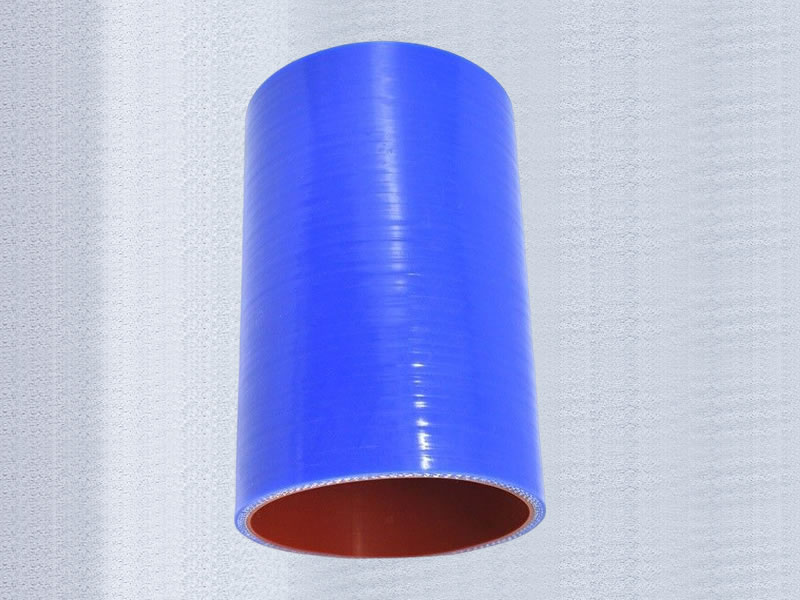

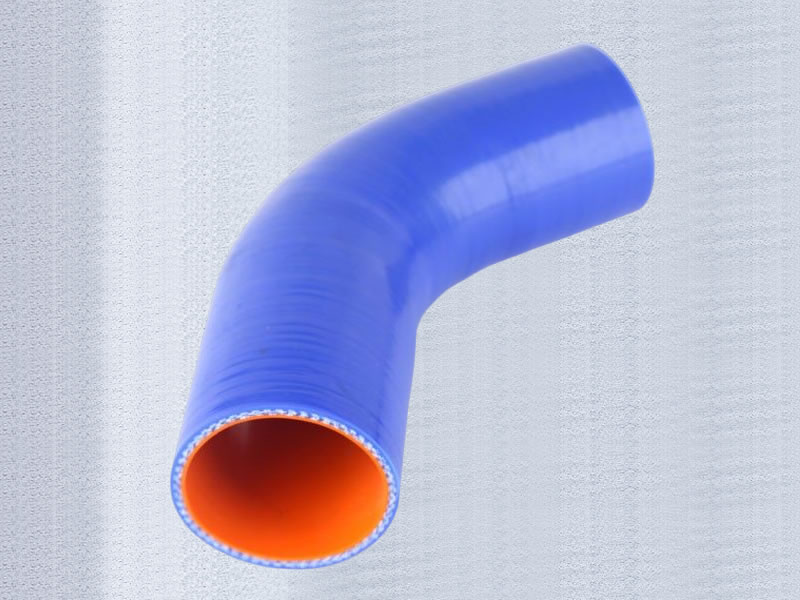

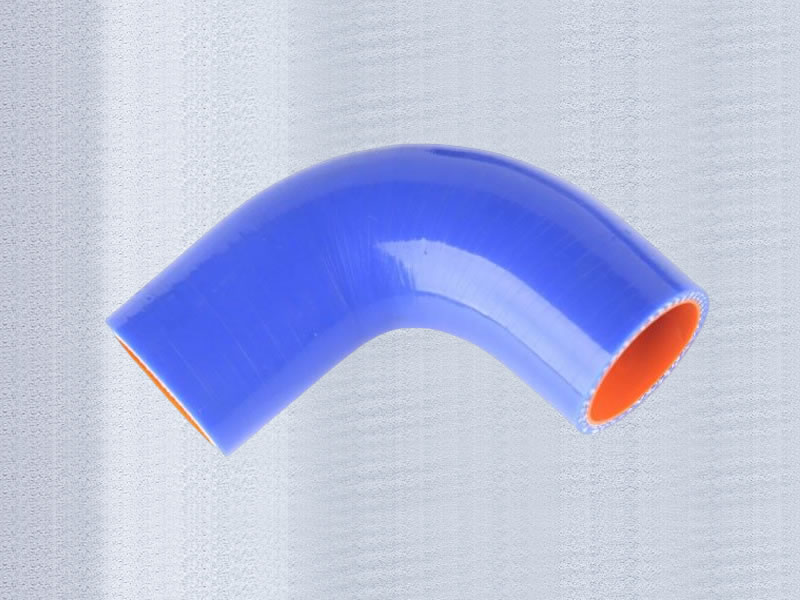

Standard Silicone Hose

Type of rubber tube : Internal fluorine external silicon rubber hose
Rubber tube material : Internal fluorine rubber or fluorosilicin, outer silica gelReinforced
layer material : Woven aramid fabric
Aramid mesh cloth
Performance parameter :
Temperature resistance : -40°C ~ 250°C
Working pressure : 20.4MPa
Property:In order to make the hoses have good oil resistance,we can adoptdifferent inner material according to the working temprature and the usingmedia.
VMQ FVMQ ACM AEM ECO

Product Name : Cooling Water hose
Category : Silicone hose series (fluoro silicone) > Cooling water
Working temperature : Nomex fabric reinforced: -40C ~ 250C
Polyester fabrice reinforced:-40°C~ 180C
Working pressure :>0.4MPA
Property : The hoses manufactuered by the standard of SAEJ20R1 CLASS A coolingsolvent resistant,low temprature leakage resistant,aging,cracking and FKM resistant.
